800 Double-Deck Vibrating Screen Machine for Brazilian University Pilot Plant

📍 Brazil · 🏛️ University R&D · 📦 Vibrating Screen Machine


Clear technical guidance and straightforward communication help first-time users adopt screening equipment with confidence. This case from a Brazilian university shows how we supported a brand-new pilot plant project with a properly sized solution and professional on-site advice.

The Customer & Project Requirements


The client is a university in Brazil building a new pilot plant, with no prior experience using this type of screening equipment. They needed a reliable unit to classify lime milk slurry for their research process.

Client’s Requirements

  • Material: Milk of lime, 15%–50% solid content, milkshake-like consistency
  • Required capacity: 310 kg/h
  • Expected screen configuration: 2 decks with 40 mesh and 100 mesh
  • Construction requirement: SS304 stainless steel

Our Recommended Solution


We proposed the Model 800 double-deck vibrating screen machine with 3 discharge outlets, which fully covers the client’s capacity and classification needs.

To demonstrate the equipment’s performance on similar materials, we shared reference videos of lime milk screening, showing its stable and efficient handling of this type of slurry.

Technical Q&A & Solution Confirmation

Ultrasonic System Clarification


The client initially requested an ultrasonic system for the screen. We explained the application scope clearly:

Ultrasonic deblinding systems are designed for fine powder materials to prevent mesh clogging by breaking up particle agglomeration; they are not suitable for liquid or slurry applications like lime milk.

Installation & Elevation Guidance


The client raised two on-site installation questions:
  1. Recommendations for mounting the unit on a concrete foundation
  2. Whether the unit can be elevated by around 500 mm to match the height of peripheral equipment

We provided clear, actionable answers:
  1. The base of the machine is pre-drilled for mounting; it can be fixed securely to a concrete foundation with expansion bolts.
  2. Elevating the unit by 500 mm is fully feasible, and it will in fact make discharged material collection more convenient.

Project Outcome

The whole process ran smoothly from initial inquiry, technical clarification to final order placement. The Model 800 double-deck SS304 vibrating screen machine fully matches the pilot plant’s lime milk classification demands, and our practical installation guidance helped the client complete site preparation without extra obstacles.

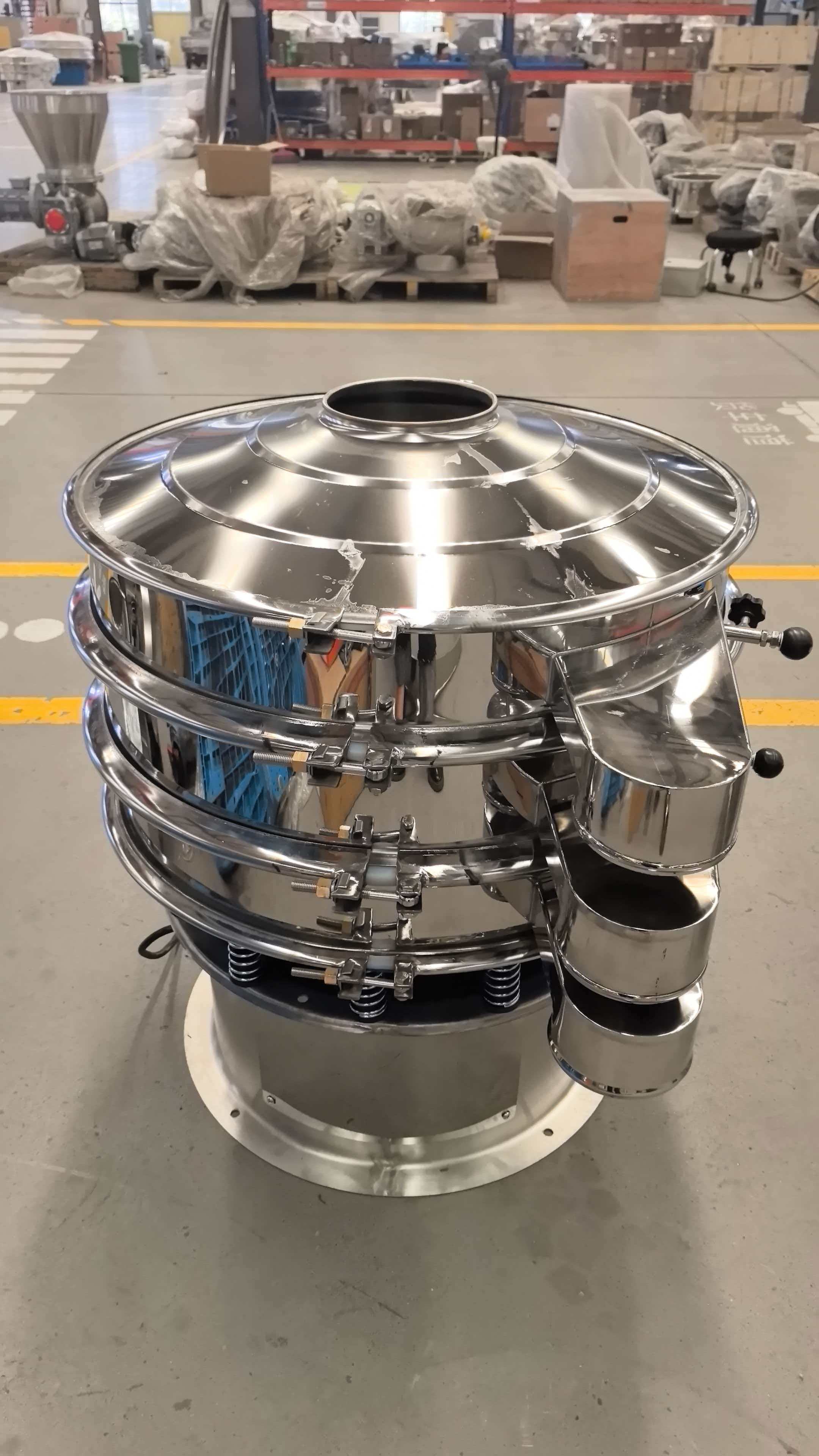

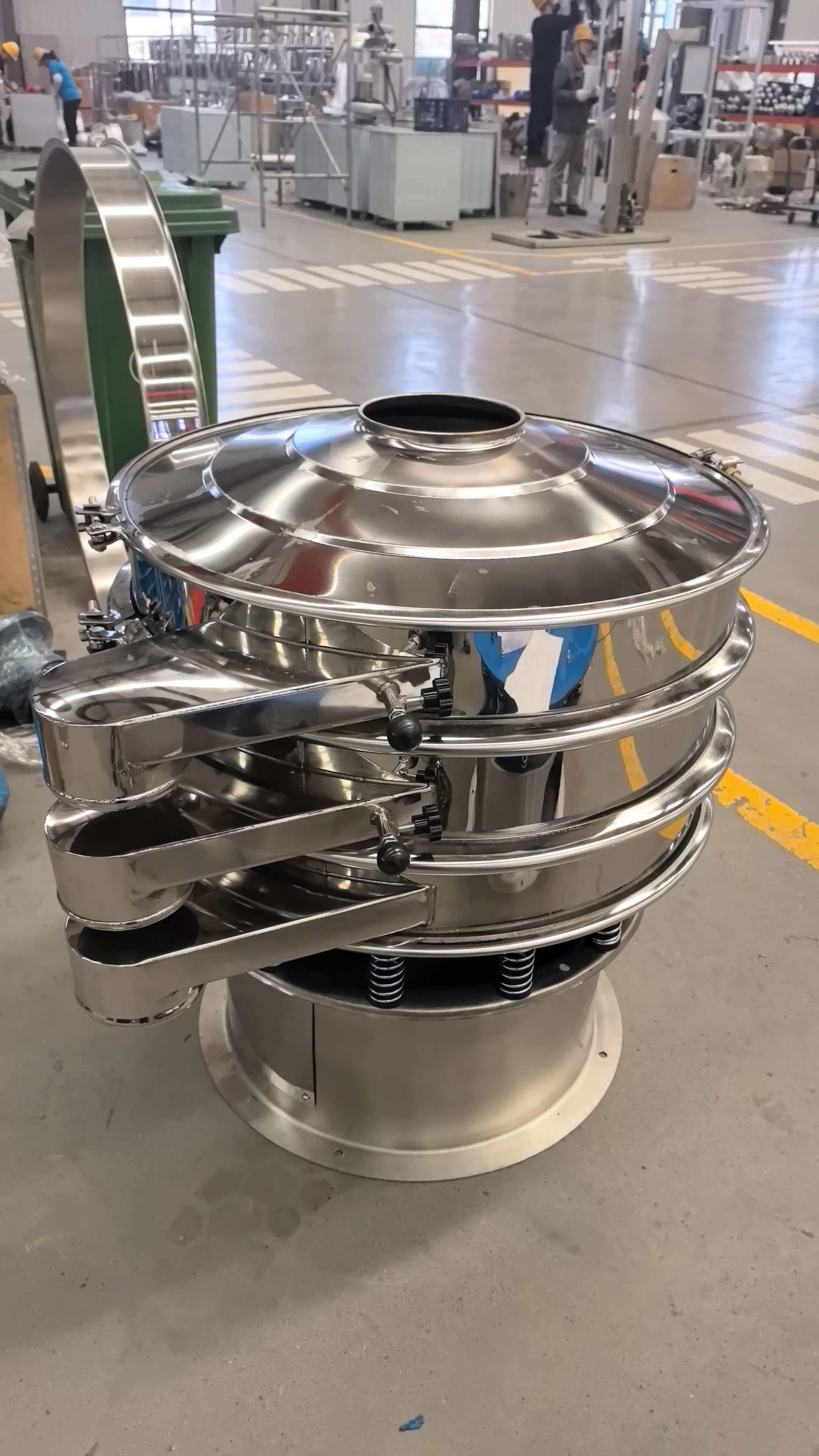

📸Take a look at what we deliver:

Full Project Workflow

  1. Client submits pilot plant parameters and lime milk property details
  2. Recommend Model 800 unit and provide reference application videos
  3. Clarify ultrasonic applicability for slurry vs. powder materials
  4. Provide concrete foundation mounting advice and confirm elevation solution
  5. Smooth order confirmation with all technical concerns resolved

If you need screening equipment for pilot plant research, slurry classification or chemical liquid filtration, we can provide customized configuration and professional technical guidance tailored to your material and site conditions.
