Vibrating Screen Machine for Testing in Germany

📍 Germany · 🏛️ Technical Institute · 📦 Vibrating Screen Machine


Every precision testing project calls for equipment that matches exact specifications and adapts to flexible research needs. This case from a German technical institute shows how we delivered a custom Vibrating Screen Machine tailored for recycled concrete aggregate research, with full technical support from sizing to on-site installation.

The Customer & Core Requirements

A technical institute in Germany required a laboratory-grade Vibrating Screen Machine to process fine recycled concrete aggregate. As a research dedicated unit, it had to meet strict material standards and support flexible test setups for different experimental scenarios.

Key specifications

  • Construction: 316 stainless steel for optimal durability

  • Screen diameter: 800 mm

  • Structure: 4 decks with 5 discharge outlets

  • Mesh sizes: 4 mm, 2 mm, 0.5 mm, 0.125 mm, 0.063 mm (one mesh set as spare replacement)

  • Special demand: operable with only 2 decks installed for specific tests

Customization & Full Technical Support

Step 1: Flexible configuration options

To speed up the quotation process, the client submitted all precise mesh and structural requirements directly. We confirmed full feasibility of the 4-deck design, and also proposed a more cost-effective 2-deck, 3-outlet alternative with reference drawings for their evaluation.

After comparison, the client retained the 4-deck, 5-outlet configuration to keep maximum flexibility for future research expansion.

Step 2: Clarifying throughput and feeding principles

After placing the order, the client asked about maximum batch load and processing capacity to design their feeding and discharging system.
We explained the operating logic clearly:
  • The screen is engineered for steady, continuous feeding, not static one-time batch loading. Bulk loading will not deliver valid screening results.
  • Under proper operation, material maintains roughly 10 mm thickness across the screen surface, flowing in and out at a uniform speed.
  • For their specified mesh precision, throughput ranges from 300 to 500 kg per hour.

We also provided the complete operation manual to help them establish standardized testing procedures.

Step 3: Installation guidance for elevated platform

The client planned to mount the screen on an elevated platform and enquired about installation precautions.

We offered clear, site-specific instructions:
  • For a steel platform: Align the mounting holes at the unit base, drill matching holes on the steel plate, and secure the unit with bolts.
  • For a concrete platform: Fix the equipment firmly onto the foundation using expansion bolts.

Project Outcome

The 800mm 4-deck 316 stainless steel Vibrating Screen Machine has been delivered as scheduled. It supports both full 4-deck precision classification and simplified 2-deck testing, perfectly matching the institute’s research demands. Our straightforward technical guidance on operation and installation also helped the client complete site preparation efficiently.

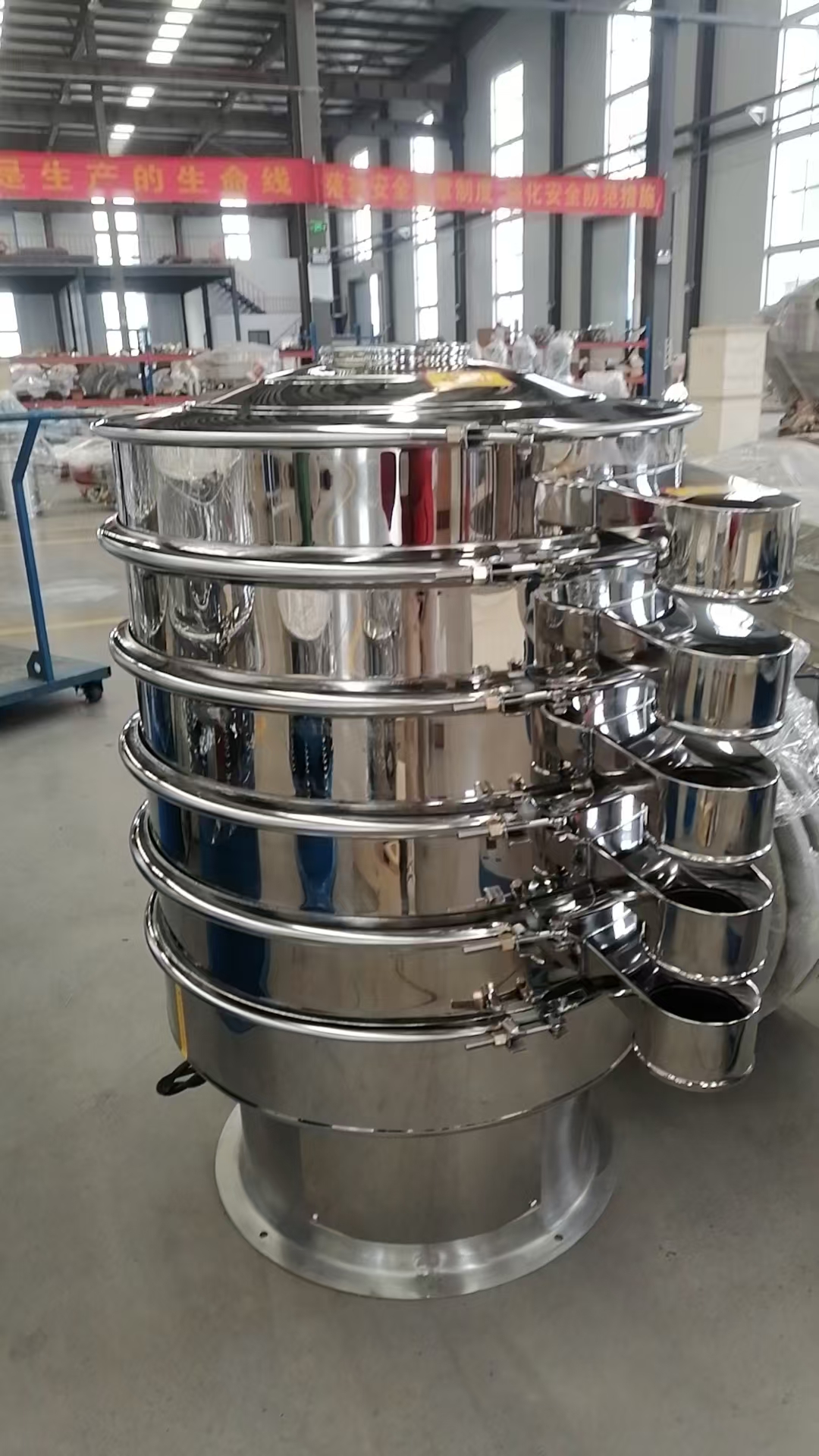

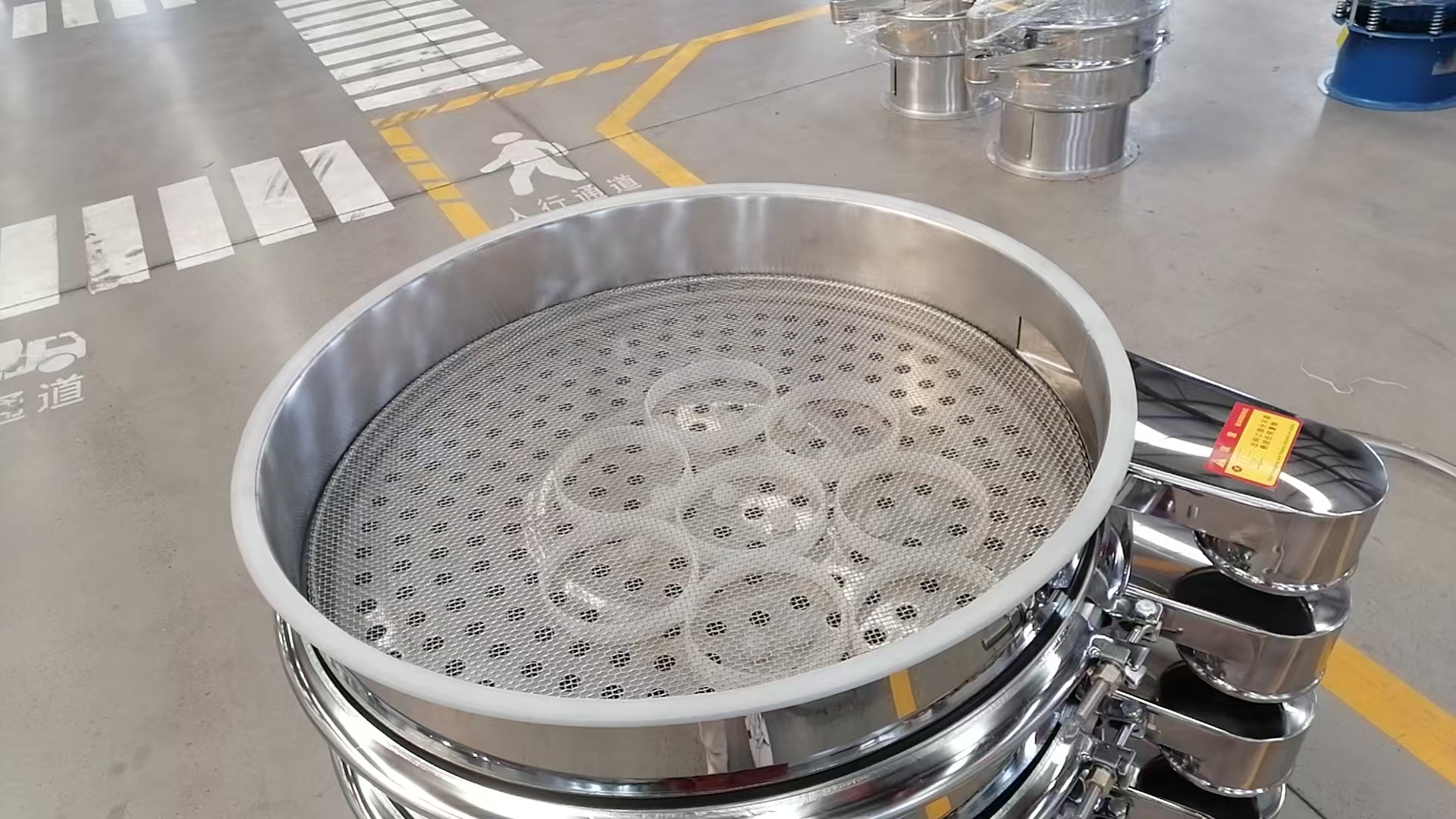

📸Take a look at what we deliver:

Full project workflow

  1. Client submits precise test requirements, material and mesh specifications
  2. We confirm feasibility and provide alternative configuration with reference drawings
  3. Client confirms 4-deck 5-outlet 316 stainless steel unit and places order
  4. We clarify feeding principle, provide throughput data and full operation manual
  5. We deliver targeted installation guidance for elevated platform
  6. Equipment delivered and ready for laboratory testing
