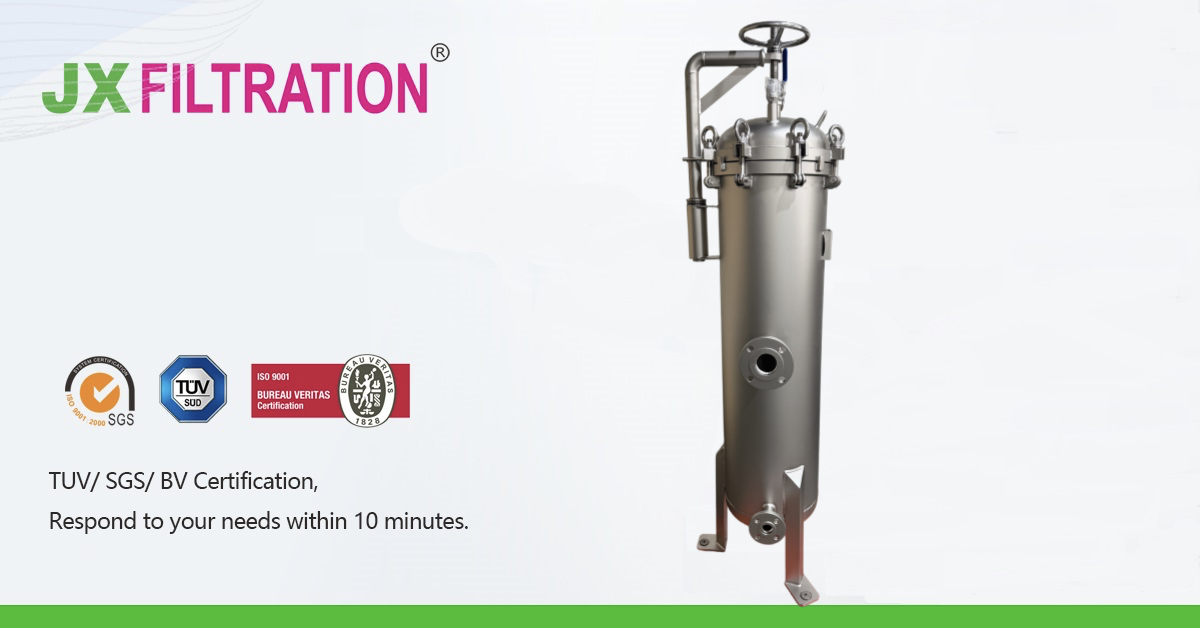

What Are the Features of JX Filtration Cartridge Filters

Cartridge filters are widely used in industrial filtration systems to remove suspended solids from liquids with high efficiency. Their modular design, ease of replacement, and wide performance range make them ideal for applications requiring consistent effluent quality. Below are key characteristics and specifications.

Key Specifications

• Slot (Pore) Size: 0.1 microns to 20 microns – capable of fine to very fine filtration.

• Treatment Capacity: 5 – 200 m³/h, suitable for small to medium flow rates.

• Application: High-precision solid-liquid separation across industries such as water treatment, electronics, chemicals, and pharmaceuticals.

Common Cartridge Types & Features

• PP Meltblown Cartridge
  Made of polypropylene microfibers, thermally bonded.
  Offers graded pore structure for high dirt holding capacity.
  Cost-effective for general water and chemical filtration.

• Wire Wound Cartridge
  Yarn or string wound around a porous core.
  Provides depth filtration with controllable winding tension.
  Good for coarse to fine filtration of liquids with high viscosity.

• PTFE Pleated Cartridge
  Pleated polytetrafluoroethylene membrane, hydrophobic and chemically inert.
  Excellent for aggressive chemicals, high temperatures, and absolute rated filtration.
  Low pressure drop and long service life.

• Stainless Steel Pleated Mesh Cartridge
  Multi-layer sintered or woven mesh, pleated for increased area.
  Reusable (cleanable), high mechanical strength, and temperature resistance.
  Ideal for high-viscosity fluids and steam sterilization.

• Sintered Mesh Cartridge
  Several layers of wire mesh sintered together to form a rigid structure.
  Uniform pore size, high burst strength, and easy backwashing.
  Used in polymer, petrochemical, and high-temperature applications.

• Activated Carbon Cartridge
  Contains granular or extruded activated carbon, often with a PP pre-filter.
  Removes chlorine, odor, color, and organic compounds.
  Typically used as a post-treatment or pre-treatment for RO systems.

Conclusion
Cartridge filters with the above specifications (0.1–20 µm, 5–200 m³/h) offer flexible, high-precision solid-liquid separation. Choosing the right cartridge type depends on chemical compatibility, temperature, required cleanliness, and operational cost.
